2GT-20 Teeth Timing Pulley for 3D Printers

Precision Motion: The 2GT-20 Teeth Timing Pulley

The 2GT-20 Teeth Timing Pulley is a fundamental power transmission component engineered for precision motion control in 3D printers and CNC machines. Its design prioritizes accuracy and durability, essential for any system demanding repeatable and reliable movement. This component forms the critical interface between a stepper motor and a synchronous belt, translating rotational energy into linear motion with minimal loss.

Material and Construction Integrity

The visible construction of this timing pulley points to a high-grade aluminum alloy. The silver-gray finish is consistent across all visible units, indicating a uniform manufacturing process. This material choice is not arbitrary.

Aluminum alloy is favored for its excellent strength-to-weight ratio and inherent resistance to corrosion. Such characteristics are vital for components subjected to continuous, dynamic loads within a 3D printer's operational envelope. The material effectively dissipates any localized heat generated during high-speed belt friction, preventing thermal expansion that could compromise timing accuracy.

Unlike pulleys made from lower-grade metals or injection-molded plastics, this aluminum variant offers superior dimensional stability. Plastic pulleys, for instance, can suffer from material creep under constant belt tension or deform under operational heat, leading to inconsistent belt tracking and reduced print quality. The solid aluminum construction ensures consistent performance over thousands of operational hours.

The 2GT Tooth Profile: A Foundation of Accuracy

This pulley features a 2GT tooth profile with 20 teeth. The rounded, curvilinear shape of these teeth is a deliberate engineering choice. This profile is distinctively optimized for synchronous belt systems.

This specific tooth geometry ensures full and positive engagement with the mating 2GT timing belt. This full engagement is crucial for distributing the load evenly across multiple teeth, which in turn minimizes backlash – the unwanted play or slop in the drive system. Reduced backlash directly translates to higher precision in linear motion, resulting in smoother surfaces and more accurate dimensions in 3D printed parts.

Older or simpler timing belt profiles, such as trapezoidal (T2.5 or MXL), often exhibit greater backlash due to their straight-sided teeth, which can lead to a less precise fit with the belt. The 2GT profile represents a significant advancement, offering a tighter, more efficient power transmission solution. It's a key factor in achieving high-fidelity machine movements.

Versatile Bore Options and Secure Mounting

The images and specifications highlight a range of optional bore diameters, including 3mm, 3.17mm, 4mm, 5mm, 6mm, 6.35mm, 7mm, and 8mm. Each pulley also incorporates two clearly visible set screw holes. This versatility is a major advantage.

These multiple bore options ensure broad compatibility with the diverse shaft diameters found on various stepper motors and lead screws used in 3D printers and small-scale CNC machines. The inclusion of two set screw holes provides a highly secure and positive lock onto the shaft. This dual-point attachment prevents any rotational slippage, which is critical for maintaining precise timing and synchronization within the motion system.

Achieving a precise fit between the pulley bore and the motor shaft is paramount. Unlike generic or poorly manufactured pulleys that might have loose or inconsistent bore tolerances, this component's range of exact bore sizes allows for a snug, wobble-free installation. A well-fitted pulley contributes significantly to overall machine rigidity and accuracy.

Dimensional Consistency for Optimal Belt Dynamics

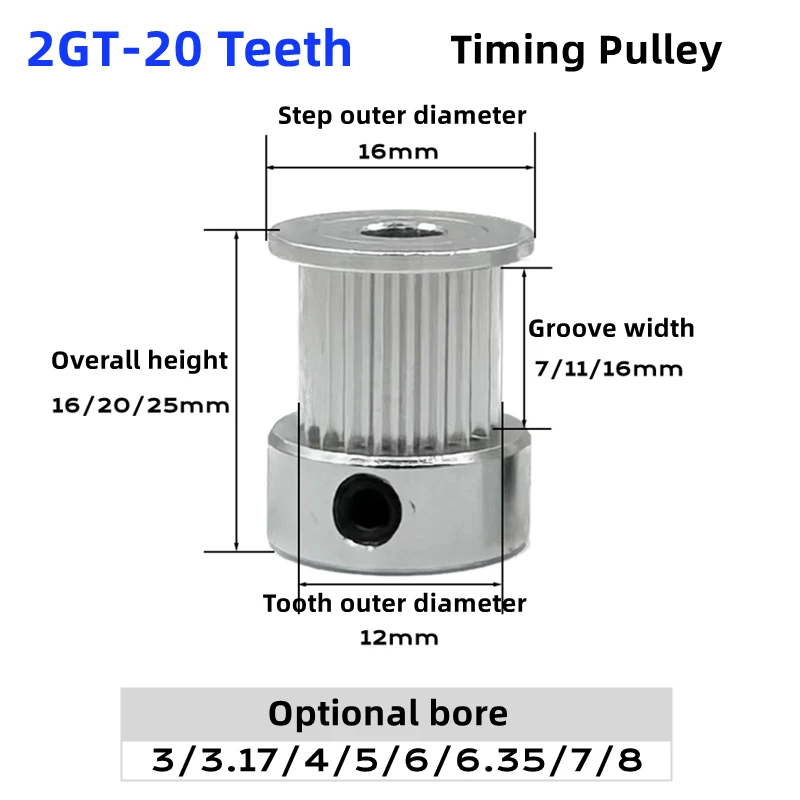

Detailed dimensions are provided, including a step outer diameter of 16mm, a tooth outer diameter of 12mm, and overall height options of 16mm, 20mm, or 25mm. The groove width options span 6mm, 7mm, 10mm, 11mm, and 16mm. These are not arbitrary numbers.

These specific dimensions are meticulously engineered to ensure optimal belt tracking and tension. A consistent groove width guarantees that the timing belt seats correctly within the pulley, minimizing friction and preventing the belt from riding up against the flanges. Proper belt engagement is non-negotiable for smooth, uninterrupted motion.

Inconsistent or poorly toleranced dimensions in lesser pulleys can lead to a host of operational issues. These include premature belt wear, increased operational noise, and uneven force distribution across the belt. Such deficiencies directly degrade the quality of output from a 3D printer or CNC machine, often manifesting as layer shifts or dimensional inaccuracies.

Surface Finish and Durability: A Tactile Perspective

The smooth, uniform metallic finish visible on these pulleys is a testament to careful machining. There are no apparent burrs, rough edges, or casting imperfections. This finish matters.

Such a refined surface finish plays a crucial role in minimizing abrasive wear on the timing belt. A smooth pulley reduces friction and stress on the belt's teeth, thereby extending the operational lifespan of both the pulley and the belt itself. This also contributes to quieter machine operation, a welcome benefit in any workshop or home environment.

Contrast this with pulleys featuring a rougher, unpolished finish. These can act like sandpaper on the timing belt, causing rapid degradation of the belt material and necessitating frequent, costly replacements. The investment in a well-finished pulley pays dividends in reduced maintenance and prolonged component life.

Application in Modern Manufacturing and Automation

These 2GT-20 teeth timing pulleys find their primary utility in the demanding environments of 3D printers and small-scale CNC machines. They are the unsung heroes of precise movement.

These machines rely heavily on accurate linear and rotational motion to achieve their intended outputs. Whether it's the precise deposition of filament in additive manufacturing or the meticulous cutting path of a CNC router, the timing pulley ensures that every step commanded by the motor is faithfully translated into physical movement. This direct correlation underpins the accuracy of every printed part or machined component.

Beyond 3D printers, these pulleys are invaluable in various small automation projects where exact positioning is critical. This includes applications in robotics, custom automation jigs, or scientific instrumentation. Their reliability and precision make them a dependable workhorse for any project requiring repeatable, controlled motion.

Value Proposition and Longevity

Offered at a competitive price point, these pulleys represent a smart investment. The initial cost is quickly justified.

The true value extends far beyond the sticker price. This component delivers a strong return on investment through significantly reduced maintenance requirements, fewer failed prints due to motion inaccuracies, and a prolonged operational life for both the pulley and the associated timing belt. It is a cost-effective choice for serious makers and professionals.

Consider this pulley an essential upgrade from stock or lower-quality alternatives. It offers peace of mind and consistent, high-quality results for all your precision motion control needs. Imagine the satisfaction of consistently crisp, dimensionally accurate 3D prints, or the smooth, silent operation of a well-tuned CNC machine, all enabled by the reliable foundation of precisely engineered timing components.
