Compact Multi-Function RJ45 Network Cable Prep Tool

Precision Network Cable Preparation: An Electrician's Perspective

The Compact Multi-Function RJ45 Network Cable Prep Tool is a specialized, multi-functional device designed for network technicians and DIY enthusiasts seeking an efficient solution for RJ45 cable preparation. This tool consolidates several critical functions—cutting, stripping, untangling, and straightening—into a single, portable unit. From an electrical safety standpoint, the integrity of network cable terminations is paramount. Faulty preparation can lead to intermittent connections, signal loss, and, in rare cases, localized overheating due to poor contact resistance, though the primary concern for network cables is data integrity rather than high-current electrical hazards.

Streamlined Cable Jacket Removal

The tool features a 360-degree rotating blade mechanism for outer jacket stripping. This design ensures a clean, circular cut around the cable's insulation, minimizing the risk of nicking internal conductors. Precise jacket removal is critical.

Nicked conductors compromise the wire's structural integrity and can lead to signal degradation or even short circuits if the damage is severe enough to expose the copper. Such damage is often invisible to the naked eye until a connection fails. Unlike basic utility knives or fixed-blade strippers, which often require multiple passes and introduce potential damage, this rotating action offers a consistent, single-motion strip, promoting safer and more reliable cable preparation.

This method significantly reduces the chance of damaging the delicate internal wires. It ensures the insulation remains intact where it should. This is a marked improvement over less precise methods.

Efficient Conductor Untangling and Straightening

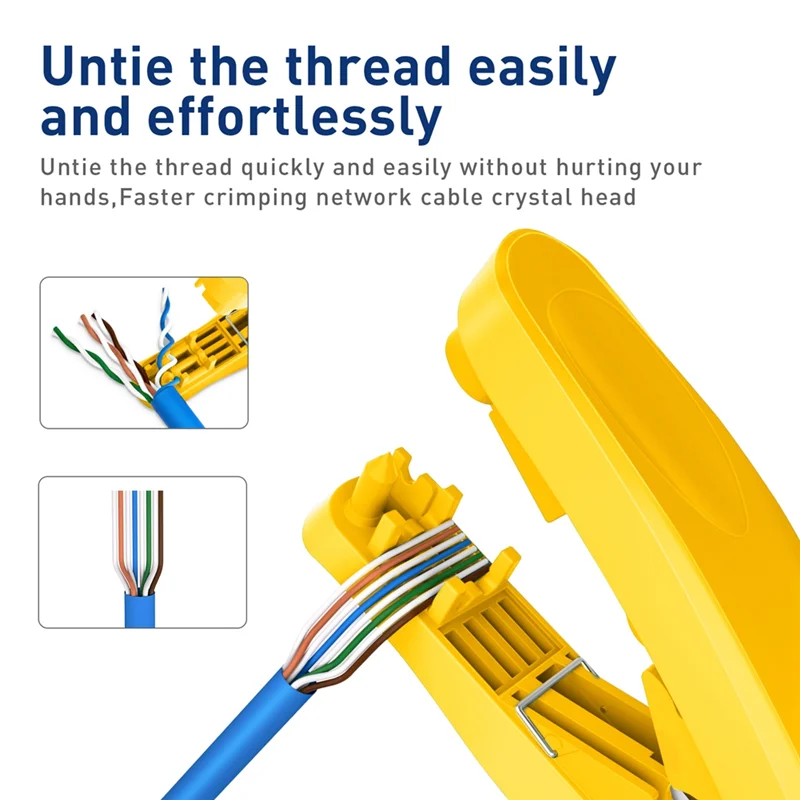

After stripping the outer jacket, network cables, especially UTP (Unshielded Twisted Pair) and STP (Shielded Twisted Pair), present twisted pairs that require untangling and straightening before termination. The tool incorporates dedicated grooves and guides for this purpose. Untie the thread easily.

Proper untangling and straightening are essential for maintaining the cable's twist rates as close as possible to the termination point, which is crucial for minimizing crosstalk and ensuring optimal signal performance. Without these features, technicians often resort to manual methods, which are time-consuming and can introduce inconsistencies in wire alignment, leading to errors in crimping. The integrated straightening guides ensure each conductor is aligned correctly for insertion into an RJ45 connector, a vital step for reliable data transmission.

This integrated approach saves considerable time during installation. It also reduces technician fatigue. Manual straightening is tedious and prone to error. The tool streamlines this often frustrating step, ensuring a professional finish. It helps maintain the electrical characteristics of the cable.

Integrated Cable Cutting Functionality

A sharp, integrated cutting blade is provided for trimming the cable to the desired length. A neat cutting edge is essential.

Clean, perpendicular cuts are vital for proper seating within the RJ45 connector and for ensuring all conductors make full contact with the connector's pins. Ragged or angled cuts can lead to poor connections, increasing resistance and potentially causing intermittent network issues. The tool's design aims to provide a precise cut without damaging the core conductors, a common issue with dull or inappropriate cutting tools. This prevents signal loss.

Compared to using standard side cutters or scissors, which can deform the cable's cross-section, this dedicated cutting mechanism ensures a clean, square end. This precision is fundamental for achieving a robust and electrically sound termination. It minimizes the need for rework. This contributes to overall project efficiency.

Durability and Ergonomics in Design

The tool's construction appears to be primarily from a durable plastic polymer, indicated by its bright yellow casing. This material choice suggests a balance between lightweight portability and sufficient rigidity for its intended functions. A compact design is evident.

While not designed for heavy-duty industrial applications, the plastic construction is appropriate for typical network installation environments, offering resistance to minor impacts and chemical exposure common in field work. The locking mechanism, a key feature, allows the tool to be securely closed when not in use, protecting the blades and reducing its footprint for storage in a tool bag. This enhances safety during transport.

Unlike heavier, all-metal crimping tools that can be cumbersome for quick prep tasks, this lighter plastic design prioritizes ease of use and portability. Its compact form factor makes it an ideal addition to a technician's everyday carry, ensuring it is readily available for on-site adjustments or new installations. The ergonomic shape appears designed for comfortable handling during repetitive tasks, reducing hand strain.

Value Proposition for Network Professionals

This 4-in-1 tool offers significant value by consolidating multiple single-purpose tools into one compact unit. The integration of cutting, stripping, untangling, and straightening functions directly addresses common pain points in network cable preparation. It simplifies the workflow.

For professionals, this means fewer tools to carry, faster preparation times, and a reduced likelihood of misplacing essential equipment. The consistent results achieved through its specialized functions contribute to higher quality installations, which translates to fewer call-backs for network issues. This directly impacts operational efficiency and client satisfaction. The investment is minimal.

Considering the cost of individual tools for each function, this integrated solution presents a compelling economic advantage. It is a cost-effective upgrade from a collection of disparate, less efficient tools. The time saved on each cable termination quickly offsets the initial purchase price, making it a smart acquisition for anyone regularly working with RJ45 network cabling. Imagine completing network installations with greater speed and confidence, knowing each cable is perfectly prepared for optimal performance.
