What does AWG mean and why is it important?

AWG stands for American Wire Gauge. It's a standard for measuring the diameter of electrical conductors. A lower AWG number indicates a thicker wire, which can carry more current with less resistance and voltage drop. It's important for safety and performance to match the cable's AWG to your device's current draw.

Can I use a 5.5x2.1mm cable with a 5.5x2.5mm device?

No, you should not. While the outer diameter (5.5mm) is the same, the inner diameter must match precisely. Using a 2.1mm plug in a 2.5mm jack will result in a loose connection and intermittent power, while attempting to force a 2.5mm plug into a 2.1mm jack can damage the connector.

What is voltage drop and how does it affect my devices?

Voltage drop is the reduction in electrical potential along a conductor due to its resistance. With longer cables or higher current loads, more voltage can be lost. This can cause devices to receive less than their required voltage, leading to dimming LEDs, reduced performance, or even malfunction. Thicker wires (lower AWG) help minimize voltage drop.

Are these cables suitable for outdoor use?

The visible construction suggests these cables are primarily designed for indoor, dry environments. They do not appear to have specific weatherproofing or UV resistance. For outdoor applications, it is recommended to use cables explicitly rated for outdoor use to ensure durability and safety against elements.

How do I choose the correct cable type for my application?

First, determine the total current draw (in Amps) of all devices you intend to power. Then, select a cable with an AWG and maximum current rating that safely exceeds this total. Also, choose the correct connector configuration (male/female) and inner diameter (2.1mm or 2.5mm) to match your power supply and devices. Finally, select an appropriate cable length to avoid excess slack or strain.

DC Power Splitter Cables for Low-Voltage Applications

Expert Analysis Overview

Precision in Power Distribution: An Electrician's Review of DC Splitter Cables

These DC power splitter cables are essential accessories designed for distributing low-voltage direct current from a single source to multiple devices. They are aimed at users requiring flexible power solutions for applications such as LED strip lighting, CCTV cameras, and various small electronic projects. The product line offers a comprehensive array of configurations, lengths, and wire gauges, addressing a common need for adaptable power connectivity without the complexity of multiple power adapters. This versatility allows for streamlined installations and reduced cable clutter in diverse setups.

Architectural Integrity and Conductor Specifications

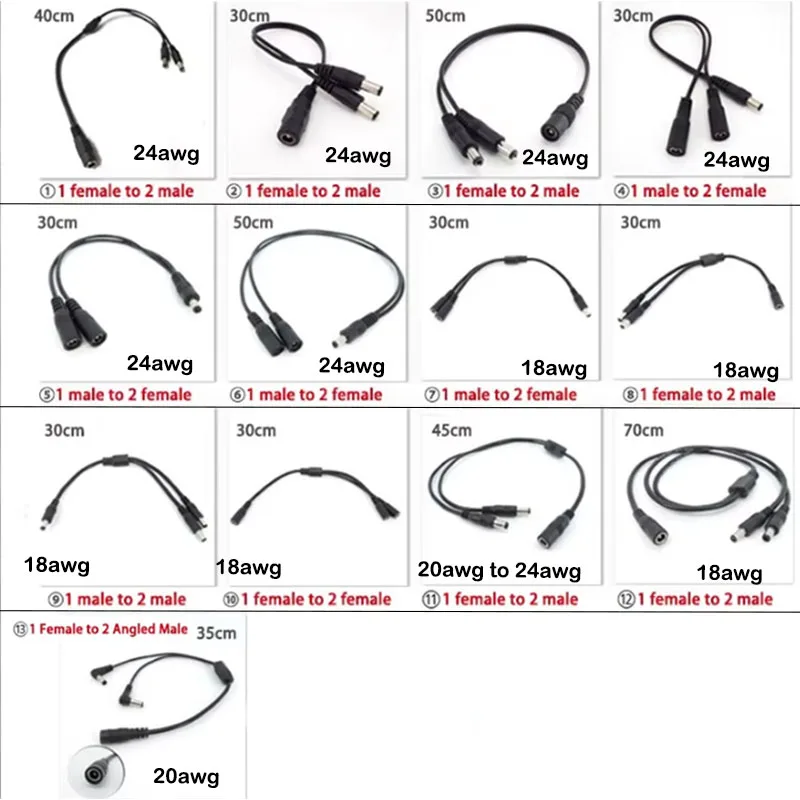

The visual data presents a range of DC splitter cables, each specified with distinct cable lengths, wire gauges (AWG), and maximum current ratings. For instance, Type 1 is a 40cm, 24AWG cable rated for 2A, while Type 12 is a 70cm, 18AWG cable rated for 7A. These specifications are critical for ensuring safe and efficient power delivery.

These varying specifications directly imply suitability for different power demands. A 24AWG cable, while thinner and more flexible, is appropriate for lower current applications, typically under 2 amps. Conversely, an 18AWG cable, with its larger conductor cross-section, can safely handle higher currents, up to 7 amps as indicated, making it suitable for more power-intensive devices. Proper gauge selection prevents overheating.

Unlike generic, unrated cables that pose significant fire hazards, these splitters provide explicit AWG and current ratings. This transparency allows for informed selection, mitigating risks associated with undersized wiring. The visible insulation appears standard for low-voltage DC applications, though specific voltage ratings or UL/CE certifications are not explicitly displayed in the provided imagery or data. Users must verify compatibility with their power supply's output voltage.

Connector Interface and Compatibility

The cables feature standard 5.5*2.1mm and 5.5*2.5mm barrel connectors, which are ubiquitous in low-voltage DC electronics. The product range includes configurations such as 1 female to 2 male, 1 male to 2 female, 1 male to 2 male, and 1 female to 2 female. This broad selection ensures compatibility with a vast array of existing power adapters and devices.

This variety of connector types and gender configurations means users can adapt their power infrastructure without extensive modifications. For example, a '1 female to 2 male' splitter allows two devices with male DC inputs to share a single female output power adapter. This simplifies wiring significantly. It is a practical solution.

Compared to relying on multiple individual power adapters, which can consume numerous wall outlets and create cable management challenges, these splitters offer a consolidated approach. The consistent 5.5mm outer diameter and 2.1mm or 2.5mm inner diameter are industry standards, ensuring broad interoperability. However, users must precisely match the inner diameter to their device's power port to avoid loose connections or damage.

Conductor Integrity and Current Handling

The wire gauge, denoted by AWG (American Wire Gauge), is a critical factor in determining a cable's current carrying capacity and resistance. Lower AWG numbers indicate thicker wires capable of handling higher currents with less voltage drop. The provided table clearly outlines the AWG for each type, ranging from 24AWG to 18AWG.

Understanding AWG is paramount for electrical safety. Using a cable with an insufficient gauge for the connected load can lead to excessive heat generation, insulation degradation, and potential fire hazards. The maximum current ratings (2A, 5A, 7A) provided for each cable type are directly correlated with its AWG, offering a clear guideline for safe operation. Always check your device's power requirements.

Unlike unmarked or ambiguously rated cables, these splitters offer a clear specification for current handling. This allows for precise matching of the cable to the application's power demands, preventing dangerous overloads. The visible construction suggests a basic, functional design, suitable for indoor, dry environments. For outdoor or harsh industrial settings, additional protective measures or higher-rated cables would be necessary.

Installation Versatility and Length Considerations

Cable lengths vary from 30cm to 70cm, providing options for both compact and slightly extended installations. The availability of different lengths allows for optimized cable routing, minimizing excess slack and reducing potential trip hazards or aesthetic clutter. Short cables are ideal for close proximity devices.

In a scenario where a power source is located centrally, and devices are positioned at varying distances, having multiple length options is invaluable. A 30cm splitter might be perfect for two devices side-by-side, while a 70cm option could reach devices further apart. This flexibility enhances installation aesthetics and functionality.

Compared to a one-size-fits-all approach, which often results in either too much or too little cable, this range of lengths offers a tailored solution. The '1 female to 2 angled male' configuration (Type 13) is particularly noteworthy, providing a low-profile connection that can be beneficial in tight spaces or for devices mounted flush against a surface. This thoughtful design detail improves usability.

Operational Safety and Voltage Drop Mitigation

While these cables offer convenience, proper selection is crucial for operational safety. The maximum current ratings must not be exceeded. Overloading a cable can cause it to heat up, potentially melting the insulation and leading to short circuits or fires. Always calculate the total current draw of all connected devices.

Voltage drop is another important consideration, especially with longer cables and higher current draws. As current flows through a conductor, a small amount of voltage is lost due to the cable's resistance. This can result in devices receiving less than their intended voltage, leading to reduced performance or malfunction. Thicker wires (lower AWG) minimize voltage drop.

Unlike simply extending a power line with any available cable, selecting the correct AWG and length for these splitters helps manage voltage drop effectively. For sensitive electronics, it is advisable to measure the voltage at the device's input to ensure it falls within the acceptable operating range. The absence of specific certifications (e.g., UL, CE) means users should exercise caution and adhere strictly to the stated current limits.

Long-Term Operational Considerations

The visible construction of these cables suggests a standard PVC jacket, common for indoor low-voltage applications. While generally durable for typical use, repeated bending or exposure to harsh environments could compromise the insulation. Regular inspection for signs of wear or damage is recommended.

For installations where cables might be subject to physical stress, such as in portable setups or areas with high foot traffic, securing the cables and minimizing strain on the connectors is advisable. The barrel connectors themselves appear to be standard molded types, which offer a reasonable degree of robustness for their intended purpose. They are not designed for heavy industrial use.

Unlike premium, industrial-grade cables with reinforced jackets and strain relief, these splitters are designed for general consumer and light commercial use. Their cost-effectiveness makes them an attractive option for projects where budget is a consideration, provided the electrical specifications are respected. Proper installation and periodic checks will extend their operational lifespan and maintain safety.

Imagine a streamlined setup where your LED strips glow uniformly, and your security cameras operate without interruption, all powered efficiently from a single, organized source. These DC splitter cables provide that foundational reliability, ensuring your low-voltage electronics receive consistent power, free from the clutter and inefficiency of multiple adapters. They simplify your electrical architecture, allowing you to focus on the functionality of your devices rather than the complexity of their power delivery. This is the practical advantage these cables deliver, making your projects cleaner, safer, and more manageable.
