Insulated Crimp Spade Wire Connectors (12-10 AWG)

Establishing Robust Connections in Solar Systems

The Insulated Crimp Spade Wire Connectors (12-10 AWG) are essential electrical components designed for solar energy enthusiasts and DIYers seeking reliable, insulated connections in DC power systems. These terminals provide a secure, low-resistance interface for wiring, a critical factor in maintaining the efficiency and safety of any solar installation. The yellow color coding immediately identifies them for 12-10 AWG applications, streamlining the selection process.

Effective wire termination directly impacts the performance of a solar array. Poor connections introduce resistance, leading to voltage drops and energy loss. These crimp terminals are engineered to minimize such inefficiencies, ensuring that the power generated by solar panels is delivered effectively to charge controllers, batteries, or inverters. A solid connection prevents energy waste.

Unlike generic or uninsulated connectors, this product offers both mechanical strength and electrical isolation. Standard electrical tape or heat shrink can supplement, but a properly insulated terminal provides a foundational layer of safety. This makes them a superior choice for environments where wires might be exposed to vibration or accidental contact, common in off-grid setups or vehicle-mounted solar systems.

Material Science for Longevity and Performance

The core of these connectors is tinned copper, visible in the metallic spade section. Copper is an excellent electrical conductor.

Tinning the copper provides a crucial layer of protection against oxidation and corrosion. In outdoor solar installations, components are frequently exposed to moisture, humidity, and temperature fluctuations. Untreated copper can corrode over time, increasing resistance and degrading the connection's integrity. The tin coating significantly extends the lifespan of the connection, maintaining its low-resistance properties even in challenging environmental conditions. This ensures consistent power transfer.

The insulation sleeve, prominently yellow, is constructed from PVC. This material offers good dielectric strength, preventing accidental short circuits between adjacent terminals or contact with grounded surfaces. PVC also exhibits reasonable flame retardancy, adding another layer of safety to the electrical system. The insulation is vital for safety.

Compared to bare metal connectors, the integrated PVC insulation simplifies installation and reduces the need for additional insulating materials. This saves time and ensures a more professional finish, which is particularly beneficial for hobbyists or those working on multiple connections within a confined space, such as a solar junction box or inverter housing.

Ensuring Optimal Current Flow

The 12-10 AWG rating specifies the wire gauges these connectors are designed to accommodate. This range is common for higher current applications in solar setups, such as connecting solar panels in parallel, wiring to charge controllers, or linking battery banks. Using the correct gauge ensures proper current handling.

Matching the connector to the wire gauge is paramount for both performance and safety. An undersized connector can overheat under load, posing a fire risk and causing significant voltage drop. An oversized connector will not crimp securely, leading to a loose connection that can arc and fail. These terminals are precisely sized for their stated AWG range, promoting optimal electrical contact.

In a scenario where a solar panel array generates substantial current, the ability of these connectors to maintain a low-resistance path is invaluable. Every millivolt saved at each connection point contributes to the overall system's efficiency. For off-grid systems, maximizing every watt-hour is critical. These connectors help achieve that goal.

This precise sizing and robust construction mean that, unlike generic connectors that might offer a wider, less precise range, these yellow terminals provide a focused solution for specific high-current wiring needs. This specialization ensures a tighter, more reliable crimp, which translates directly into better system performance and reduced maintenance over time.

Installation Precision and Compatibility

The design includes both male and female spade connectors, facilitating quick disconnect and reconnect capabilities. This feature is particularly useful for modular solar systems, troubleshooting, or performing maintenance without needing to cut and re-crimp wires. Disconnecting is simple.

Proper crimping is essential for these terminals. A dedicated crimping tool designed for insulated terminals is required to create a gas-tight connection between the wire and the terminal. This prevents air and moisture ingress, which can lead to corrosion and increased resistance. The quality of the crimp directly determines the connection's longevity and performance.

For solar energy hobbyists, understanding the importance of a good crimp cannot be overstated. A poorly crimped terminal is a weak link in the electrical chain, potentially leading to intermittent power, overheating, or complete system failure. The visual design of these terminals allows for inspection of the crimp, ensuring the wire strands are fully captured and the insulation is properly seated.

These connectors are compatible with standard 6.3mm spade terminals found in many automotive and marine electrical systems, which often share components with smaller-scale solar installations. This broad compatibility makes them a versatile choice for various projects, from RV solar setups to small cabin power systems. Their standardized sizing simplifies integration.

The Long-Term Value Proposition

Investing in quality connectors like these is a small cost compared to the potential losses from inefficient or unsafe wiring. The cost-per-use over the lifespan of a solar system makes these an economical choice. Preventing energy loss saves money.

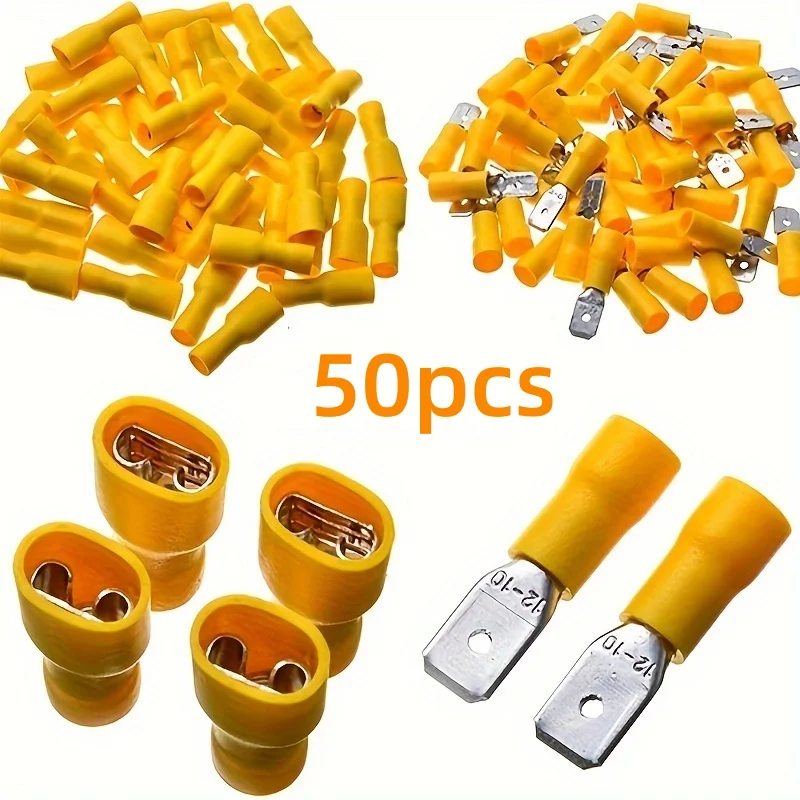

The convenience of having 25 male and 25 female connectors in a single pack provides ample supply for most small to medium-sized solar projects. This eliminates the need for multiple purchases and ensures consistency in connection quality across the entire system. Having both types readily available streamlines the wiring process.

For those building or expanding a self-sustaining energy system, these connectors contribute significantly to the overall reliability. They are a foundational element that supports the long-term, uninterrupted operation of solar panels and associated equipment. Their role in minimizing efficiency losses is not to be underestimated.

Imagine the peace of mind that comes from knowing every electrical connection in a solar power system is secure, insulated, and optimized for maximum energy transfer. Visualize a solar setup operating at peak efficiency, reliably powering essential devices without unexpected interruptions or the constant worry of failing connections. These connectors provide the dependable electrical backbone for a robust and enduring solar energy solution, allowing for more time enjoying sustainable power and less time troubleshooting wiring issues.
