Multi-Pitch Male Pin Header & Socket Kit

Precision Interconnects for Sustainable Energy Systems

This collection of male pin headers and corresponding sockets represents a foundational toolkit for any serious solar energy hobbyist or electronics enthusiast. The Multi-Pitch Male Pin Header & Socket Kit is a crucial component for establishing reliable, modular connections within diverse electronic projects, particularly those focused on self-sustaining energy systems. Unlike generic connector assortments that often limit choices, this kit provides a comprehensive range of pitches and form factors, directly addressing common compatibility frustrations in custom circuit design.

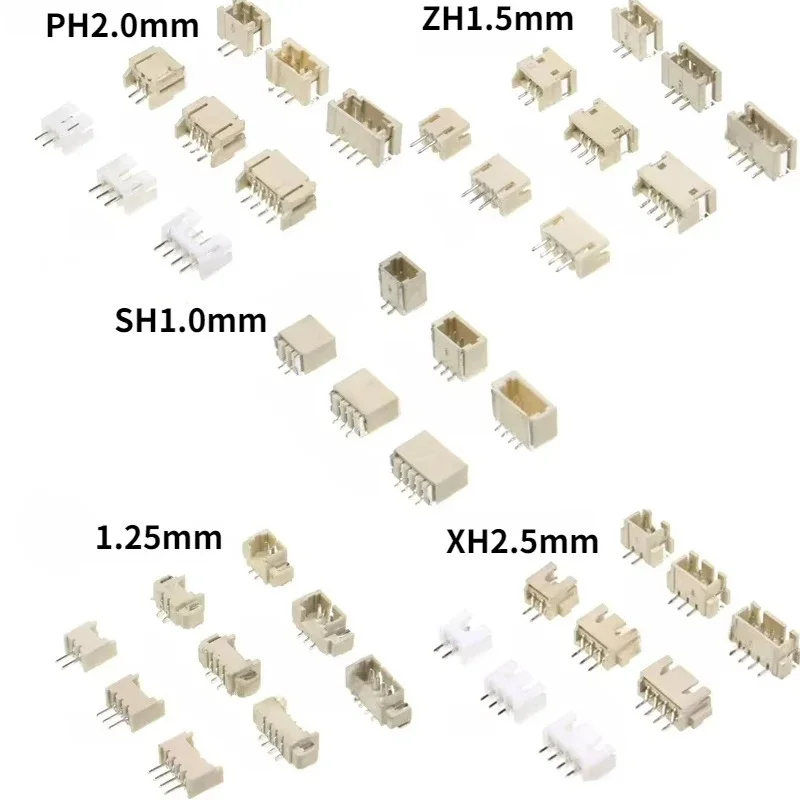

The visible array of connectors spans several critical pitches: SH1.0mm, 1.25mm, ZH1.5mm, PH2.0mm, and XH2.54mm. Each pitch is available in various configurations, including DIP (Through-Hole), Right Angle SMD (Surface Mount Device), and Vertical SMD. This extensive selection ensures that designers can select the exact connector needed for precise board layouts and component integration, minimizing the need for adapters or makeshift solutions that can introduce resistance and reduce efficiency. The inclusion of both male headers and female sockets, often referred to as 'wafers', provides a complete connection solution.

Optimizing Connection Integrity for Solar Applications

In solar energy systems, every millivolt counts. The integrity of electrical connections directly impacts overall conversion efficiency. Poorly chosen or improperly installed connectors can introduce significant resistance, leading to voltage drop and power loss, especially in low-voltage DC circuits common in solar setups. This kit, by offering a variety of robust connection types, directly supports the goal of minimizing such losses. Secure physical connections are paramount.

These connectors, when properly soldered, ensure a stable electrical pathway. They prevent the intermittent connections that plague many DIY projects. This reliability is critical for sensitive components like Maximum Power Point Tracking (MPPT) controllers or battery management systems (BMS) where consistent data and power flow are non-negotiable. The visual evidence suggests standard plastic and metal construction, implying a baseline of durability suitable for prototyping and semi-permanent installations.

Compared to using generic wire-to-board solutions or terminal blocks, these pin headers and sockets offer a more compact and professional finish. They also facilitate easier debugging and component replacement. This modularity is a significant advantage over direct soldering, which can make modifications challenging. The ability to quickly disconnect and reconnect modules streamlines testing phases.

Versatility in Form Factors: DIP vs. SMD

The availability of DIP, Right Angle SMD, and Vertical SMD configurations provides unparalleled design flexibility. Each form factor serves a distinct purpose in circuit board design and assembly, allowing for optimal space utilization and integration into various enclosures.

DIP (Dual In-line Package) connectors are designed for through-hole mounting. They are generally easier for hobbyists to solder by hand, making them ideal for prototyping on breadboards or custom PCBs where manual assembly is preferred. Their larger footprint, however, can be a consideration for compact designs. These are often the go-to for initial circuit validation.

In contrast, SMD (Surface Mount Device) connectors, both Right Angle and Vertical, are engineered for high-density board layouts. Vertical SMD connectors stand upright, minimizing board area footprint and allowing for connections perpendicular to the PCB surface. Right Angle SMD connectors offer a horizontal connection, useful for routing cables parallel to the board or fitting into slim enclosures. These SMD options are crucial for miniaturized solar charge controllers, embedded sensors, or portable power solutions where space is at a premium. While requiring more precise soldering techniques, often with finer tips or reflow methods, their space-saving benefits are undeniable.

This dual approach to mounting options means the kit supports both traditional and modern PCB assembly methods. It is an upgrade from kits that only provide one mounting style. This ensures that whether a project prioritizes ease of assembly or compact design, the appropriate connector is readily available. The design choice impacts the final product's form factor.

Ensuring Compatibility with Existing Solar Setups

One of the primary challenges in building or expanding a self-sustaining energy system is ensuring component compatibility. Different modules, sensors, and microcontrollers often utilize varying connector pitches. This kit directly addresses this pain point by offering a broad spectrum of common pitches, from the ultra-fine SH1.0mm to the more robust XH2.54mm.

When verifying compatibility, designers must consider both the pitch (distance between pin centers) and the number of pins. This assortment provides options for 2-pin up to 12-pin configurations across multiple pitches. Such a wide range significantly increases the likelihood of finding a direct match for existing circuit boards or for designing new ones with standard footprints. This eliminates the need for inconvenient and potentially unreliable custom wiring.

For example, if integrating a new sensor into an existing solar weather station, the ability to quickly match the sensor's output connector pitch to a compatible header on the main control board is invaluable. This prevents delays and ensures a clean, professional integration. The sheer variety reduces project roadblocks. It supports rapid iteration.

Building Modular and Serviceable Solar Systems

Modular design is a cornerstone of efficient and maintainable solar energy systems. The ability to easily connect and disconnect components allows for straightforward upgrades, troubleshooting, and repairs. These pin headers and sockets are fundamental enablers of such modularity.

Imagine constructing a custom solar charge controller where the input from the solar panel, the output to the battery, and connections to monitoring sensors are all made via these standardized connectors. If a sensor fails, it can be unplugged and replaced without desoldering. If the system needs to be expanded with additional battery monitoring, new modules can be added seamlessly. This approach extends the lifespan of the entire system by making individual component servicing feasible. It simplifies complex wiring harnesses.

The investment in a comprehensive connector kit like this translates into long-term savings in terms of time and effort. It reduces the likelihood of damaging PCBs during component removal. The ability to quickly swap out modules for testing or upgrade purposes accelerates development cycles for hobbyists. This is a clear return on investment for any serious builder.

Final Thoughts on Integration and Longevity

This multi-pitch connector kit is an indispensable resource for anyone engaged in solar energy projects or general electronics. Its broad compatibility, diverse form factors, and emphasis on secure connections directly contribute to the creation of efficient, reliable, and maintainable systems. The ability to choose the right connector for the job, whether for a compact SMD layout or an easily hand-soldered DIP prototype, streamlines the design and assembly process.

Consider the satisfaction of completing a custom solar power bank or an automated garden irrigation system, knowing that every electrical connection is robust and precisely matched. This kit empowers the creation of self-sustaining energy solutions that are not only functional but also elegantly designed and easily serviceable. It is a critical enabler for innovation in personal energy projects. The precision offered minimizes future headaches. This allows for focus on the system's core functionality, rather than wrestling with incompatible parts. The robust connections ensure longevity and consistent performance, a true mark of a well-engineered solar solution.
