XT90 High-Current Copper Bullet Connectors for RC & Lipo Applications

Precision Power Interfacing: The XT90 Connector Standard

The XT90 High-Current Copper Bullet Connectors are a robust electrical interface designed for high-amperage applications, primarily targeting the demanding power requirements of RC models, drones, and Lipo battery systems. These connectors represent a critical component in ensuring both the performance and safety of high-power electrical circuits. Their design prioritizes secure connections and efficient power transfer, directly addressing common frustrations with unreliable or undersized connectors in hobbyist and professional settings. Reliability is paramount.

Material Science and Thermal Resilience

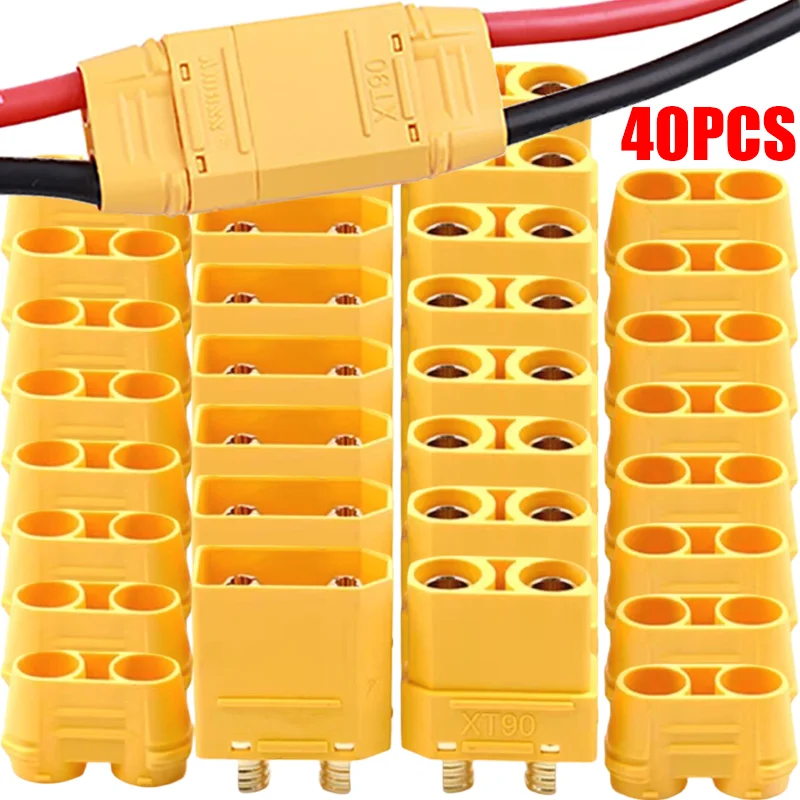

The visible yellow housing of these XT90 connectors is constructed from high-temperature nylon, a material specifically chosen for its excellent insulating properties and thermal stability. Unlike standard plastics that can deform or melt under sustained high current loads, nylon maintains its structural integrity across a wide operating temperature range, from -20°C to 120°C. This resilience is crucial for preventing short circuits and maintaining connection integrity in environments where components can generate significant heat. The material choice directly contributes to the connector's longevity and safety profile. It resists degradation. This robust construction stands in stark contrast to generic connectors often found with brittle or low-grade plastic housings, which can quickly fail under the thermal stress of high-current applications, leading to dangerous electrical faults or equipment damage. This is a significant upgrade.

Internally, the connectors feature gold-plated copper bullet terminals. Copper is an exceptional electrical conductor, minimizing resistance and heat generation during power transmission. The gold plating further enhances conductivity and provides corrosion resistance, ensuring a stable, low-impedance connection over time. This combination of materials is engineered to handle continuous current loads up to 90 Amperes, with peak capabilities reaching 120 Amperes, making them suitable for even the most power-hungry setups. Conductivity is key. This superior terminal quality prevents the voltage drops and localized heating often experienced with cheaper, unplated, or inferior metal terminals, which can severely impact battery life and motor efficiency.

Connection Security and User Experience

One of the defining features of the XT90 design is its secure interlocking male/female mechanism. When properly connected, a distinct "click" indicates that the two halves are firmly engaged, creating a vibration-resistant and mechanically stable joint. This positive locking action is vital in dynamic applications like RC vehicles, where constant movement and vibration could otherwise lead to intermittent connections or complete disengagement. A secure connection is essential. The design also incorporates extended grip caps, visible in the product imagery, which provide a larger surface area for users to grasp when plugging and unplugging the connectors. This ergonomic improvement reduces strain on the soldered wire joints and minimizes the risk of accidental wire detachment, a common point of failure with connectors lacking such features. Ease of use matters.

Furthermore, genuine XT90 connectors are known for their anti-spark design. This feature typically involves one of the male pins making contact slightly before the other, allowing a small resistor to pre-charge any connected capacitors before full current flow. This mitigates the initial current surge that often produces a visible spark and can cause wear on the connector terminals or stress sensitive electronic components. Spark reduction protects equipment. This thoughtful engineering detail extends the lifespan of both the connectors and the connected devices, offering a level of protection not typically found in basic electrical connectors. It's a subtle but important advantage.

Wiring and Soldering Best Practices

The images clearly recommend using 10AWG wire with these XT90 connectors. This specification is critical for maintaining the connector's high current rating throughout the entire circuit. Using an undersized wire gauge (e.g., 14AWG or smaller) with a high-current connector like the XT90 creates a bottleneck, where the wire itself becomes the weakest link, leading to excessive heat generation, voltage drop, and potential fire hazards. Proper wire selection is non-negotiable. The generous solder cups within the XT90 terminals are designed to accommodate these larger gauge wires, facilitating a robust and low-resistance solder joint. A well-executed solder connection is as important as the connector itself; a cold or weak joint can negate all the benefits of high-quality materials, introducing resistance and heat. Soldering skill is required.

Unlike some connectors that necessitate external heat shrink tubing for insulation and strain relief, the XT90 design often integrates a protective cover cap that slides over the soldered connections. This "one step, no shrink tube" approach, highlighted in the product visuals, streamlines the assembly process and provides a clean, insulated finish. This integration saves time. It also ensures consistent insulation, reducing the chance of exposed conductors that could lead to accidental short circuits. This design simplifies installation while maintaining high safety standards, a clear advantage over connectors requiring additional insulation steps.

The Value of Reliable Connections

Investing in high-quality XT90 connectors is a strategic decision that offers significant long-term value. While the initial cost might be slightly higher than generic alternatives, the enhanced safety, reliability, and performance they provide far outweigh this difference. Preventing a single electrical fault, equipment damage, or even a fire due to a failed connector justifies the investment. Safety is priceless. These connectors ensure that power is delivered efficiently and consistently, maximizing the performance and lifespan of expensive RC batteries, motors, and electronic speed controllers. They are an insurance policy. For any application where power integrity and safety cannot be compromised, the XT90 standard offers a proven and dependable solution.

Imagine the confidence of operating your high-performance drone or RC vehicle, knowing that every electrical connection is engineered for maximum safety and efficiency. The smooth, uninterrupted power delivery translates directly into predictable control and extended flight times, free from the anxieties of intermittent power or overheating components. This level of reliability allows for focused enjoyment and peak performance from your equipment, ensuring that your investment in high-quality electronics is fully realized. It's about peace of mind.
